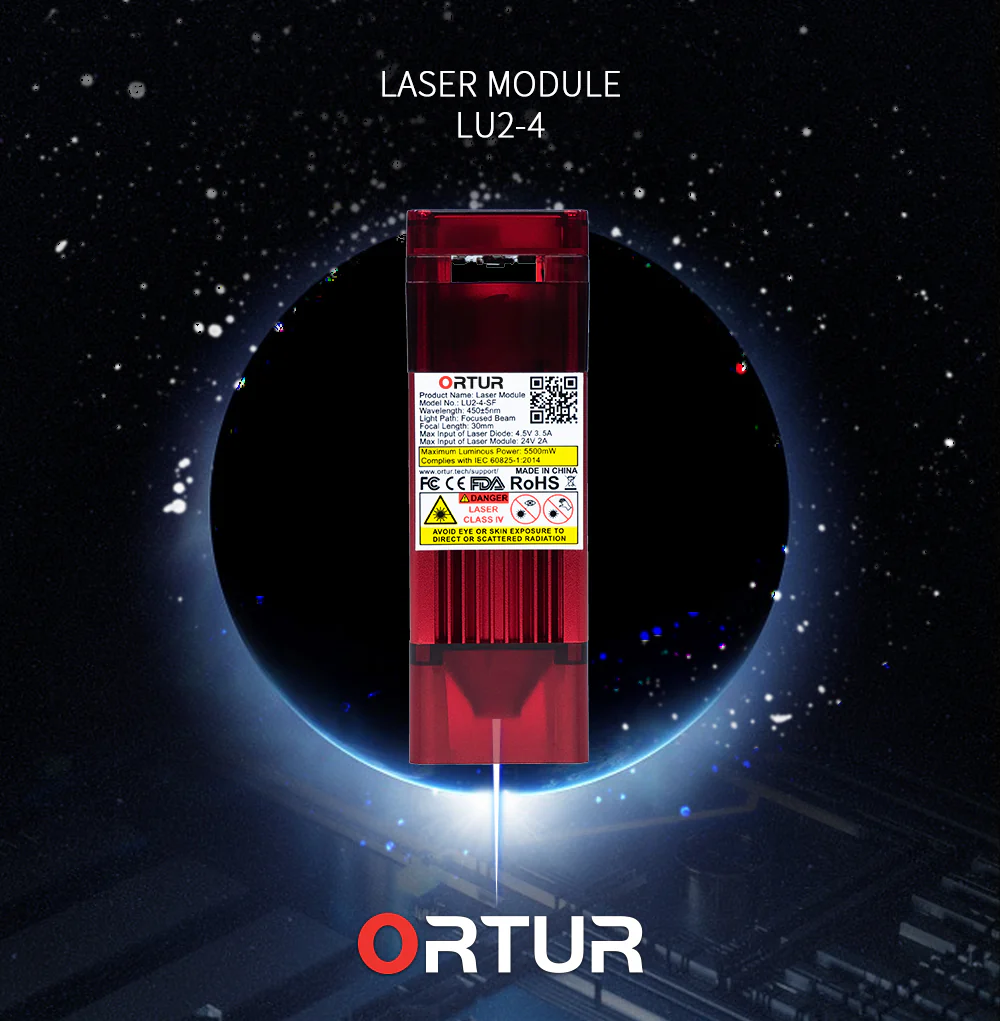

Ortur 5W Short-Focus Laser Module LU2-4 SF

Ortur 5W Short-Focus Laser Module LU2-4 SF

$119.00 USD
$169.00 USD $119.00 USD
-$50.00 Sold out
Shipping calculated at checkout.
  • Wide Compatibility: The LU2-4 SF 5.5W Laser Module is fully compatible with Ortur Laser Master 2 Pro S2, Ortur Laser Master 2 S2, as well as other Ortur laser engravers supporting 24V/2A.
  • Quick Shipping: All orders are shipped within 48 hours (excluding weekends), ensuring fast delivery to keep your projects on track.
  • ⚡ Don't worry about the plug! We will automatically ship the correct power adapter according to your shipping address. If you have a specific plug type request, feel free to leave a note at checkout or contact us.
View full details
Ortur 5W Short-Focus Laser Module LU2-4 SF fine engraving

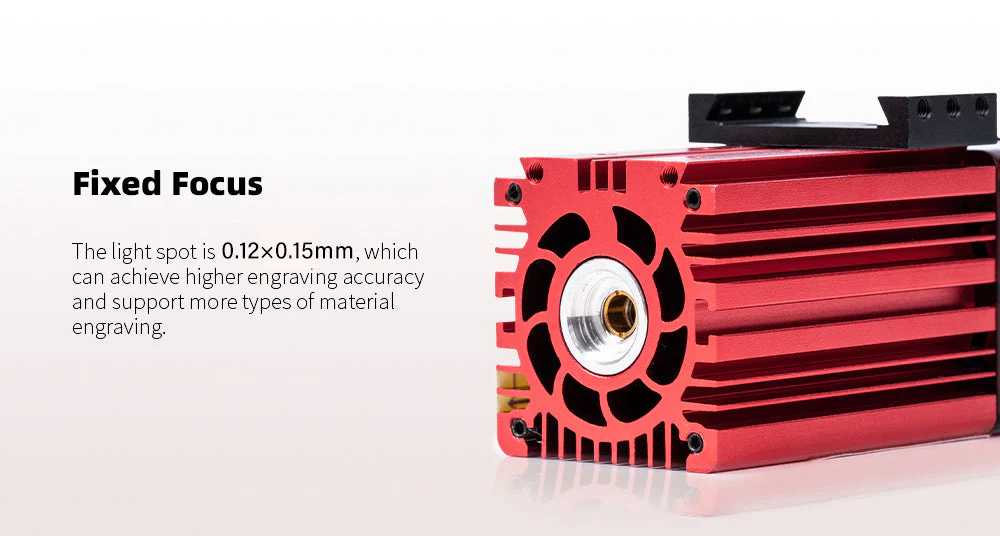

 Fine Engraving

The LU2-4 LF laser module has a spot size of 0.12 x 0.15 mm, allowing for higher engraving accuracy and compatibility with a wide range of materials.

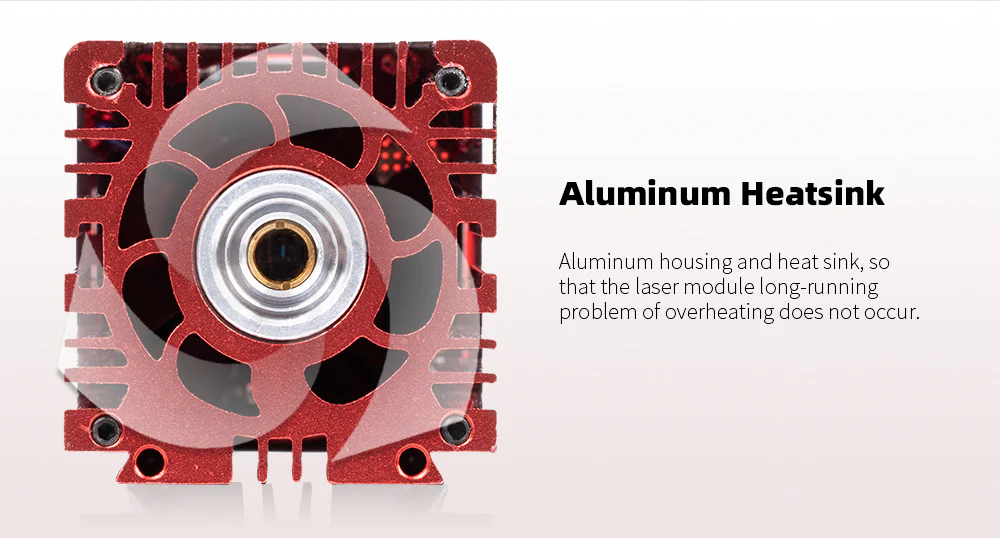

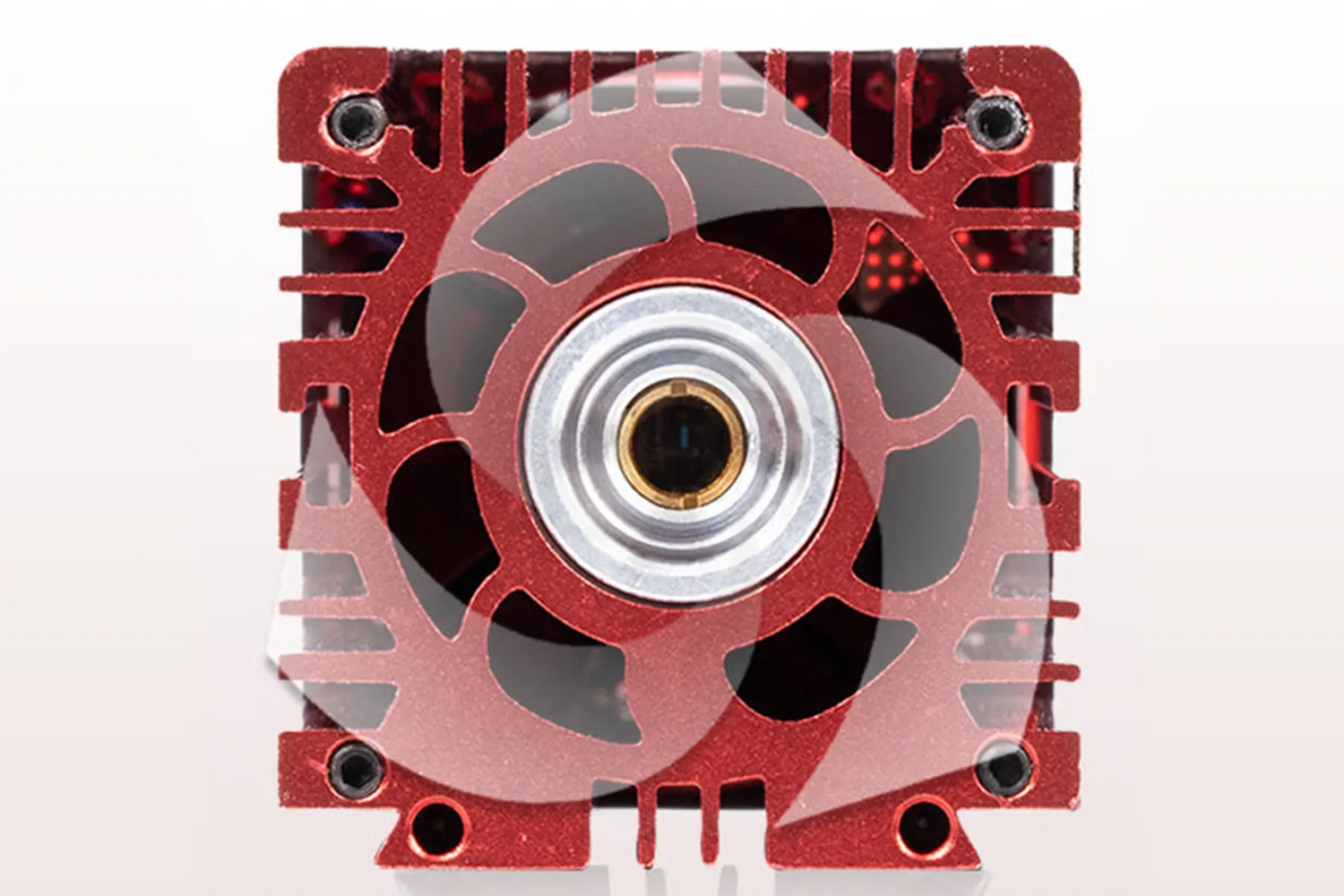

Aluminum Heatsink

The laser module features an aluminum housing and heat sink to prevent overheating during extended use, ensuring long-lasting performance.

Ortur 5W Short-Focus Laser Module LU2-4 SF laser filter shield

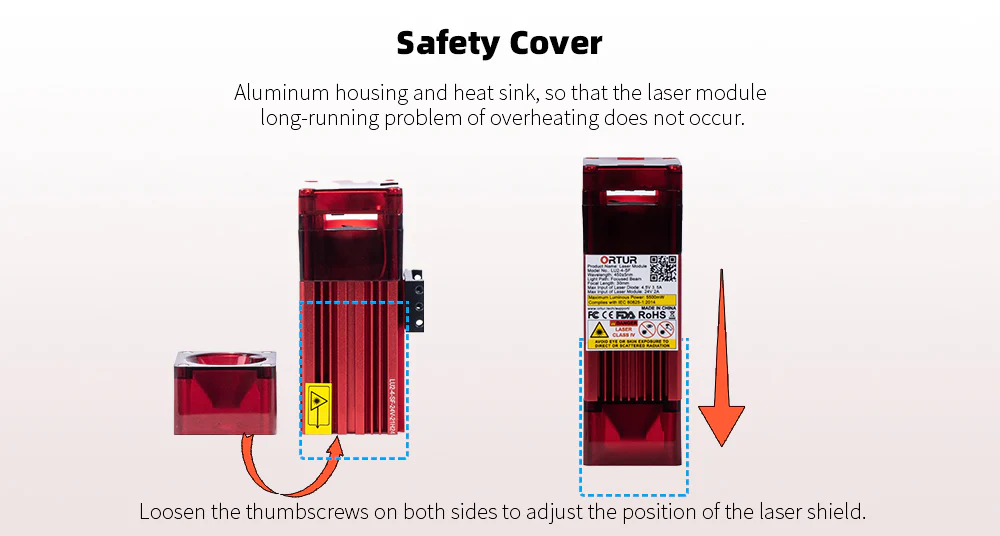

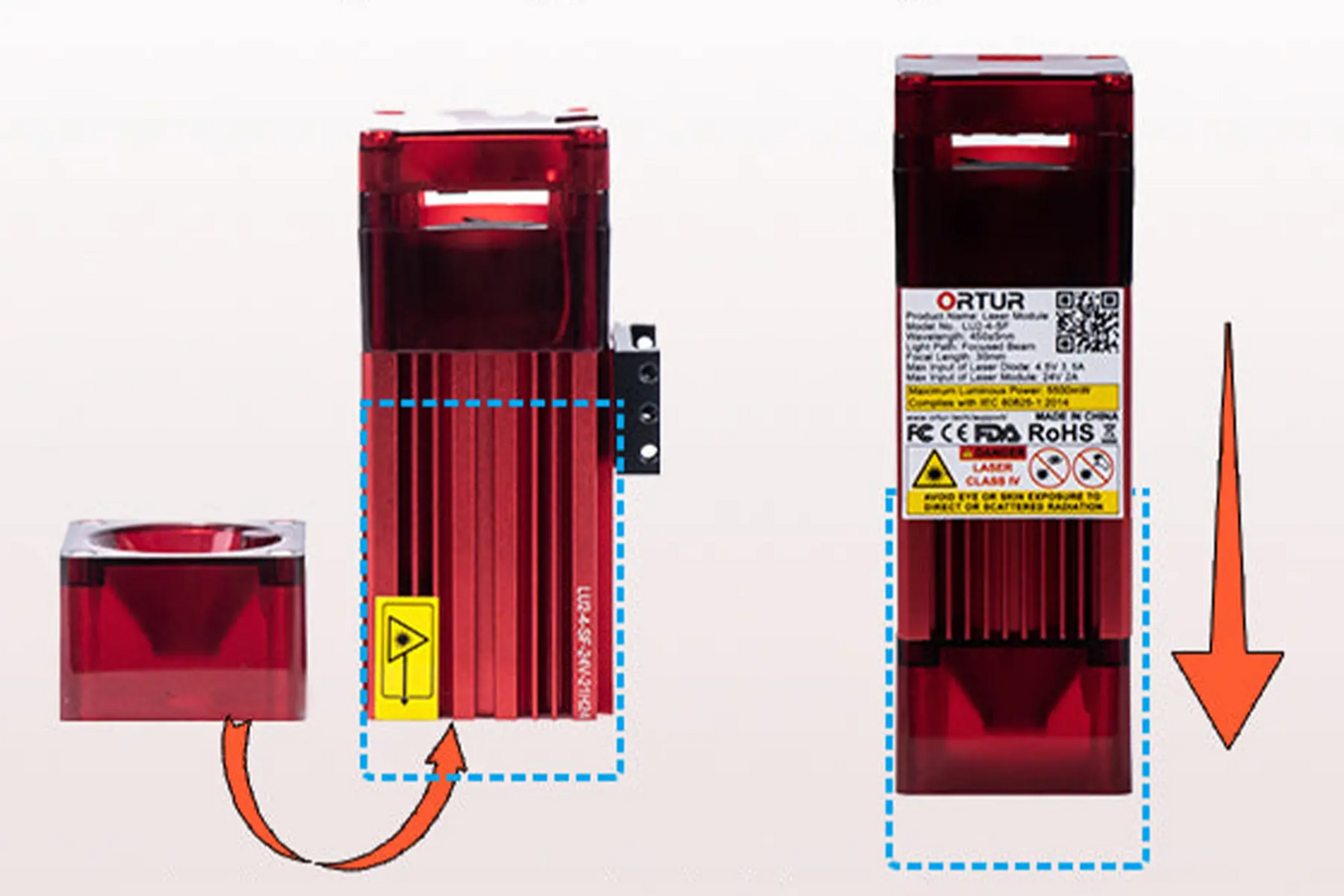

Laser Filter Shield

The built-in laser shield filters out harmful laser light for safer and more comfortable engraving. You can easily adjust the shield’s position by loosening the thumbscrews on both sides.

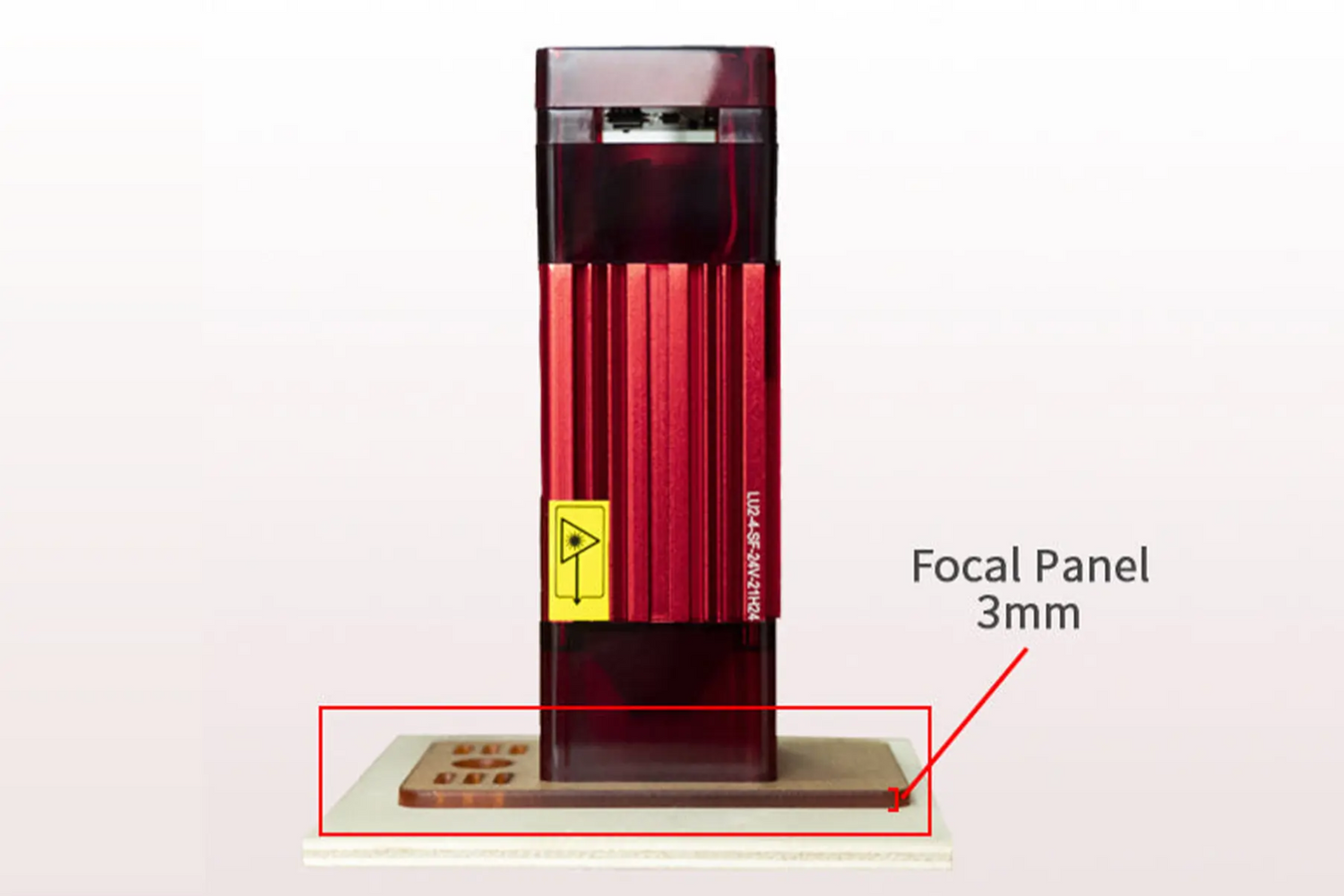

Ortur 5W Short-Focus Laser Module LU2-4 SF focal gauge board

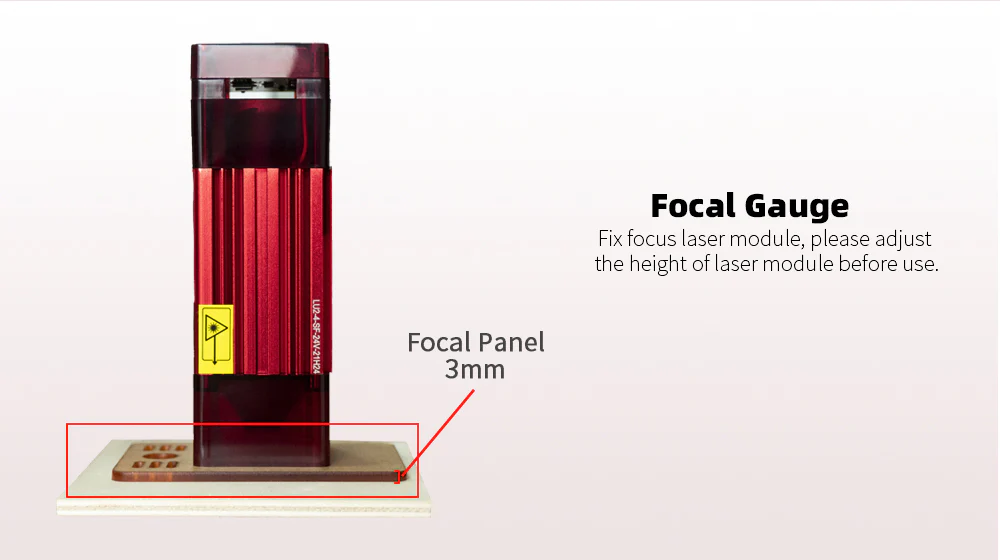

Focal Gauge

This is a fixed-focus laser module. Please adjust the height of the laser module before use to ensure proper focusing for optimal results.

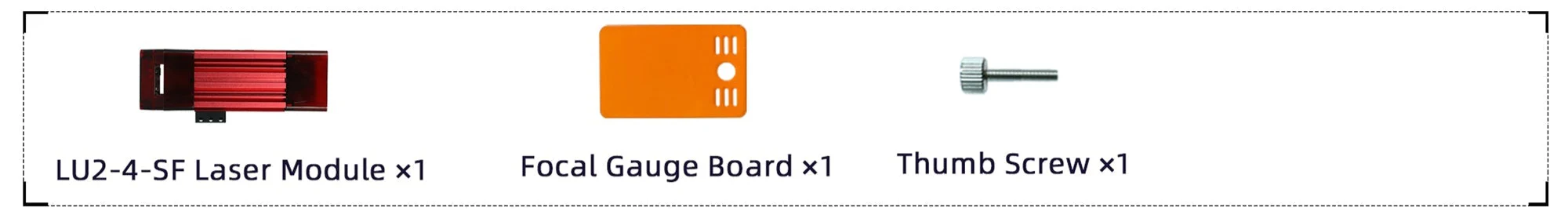

Package List

Ortur 5W Short-Focus Laser Module LU2-4 SF package list

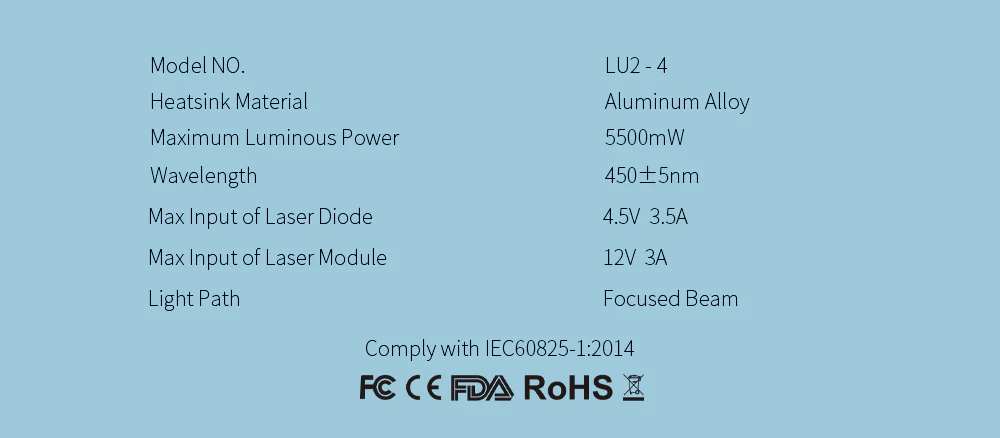

Specifications

Optical Power

5.5W

Spot Size

0.12 x 0.15 mm

Focal Length

30 mm

Focusing Mode

Manual

Wavelength

450 ± 5 nm

Power Input

24V / 2A

Laser Technology

Optical Compression

Exhaust Nozzle

❌ Not Included

Z-Height Adjuster Compatibility

✔ Compatible

Lifetime

>10,000 hours

Cleaning Frequency

Every 30 hours

Cleaning Method

Wipe the lens gently with a cotton swab dampened with alcohol, then let it air dry.
